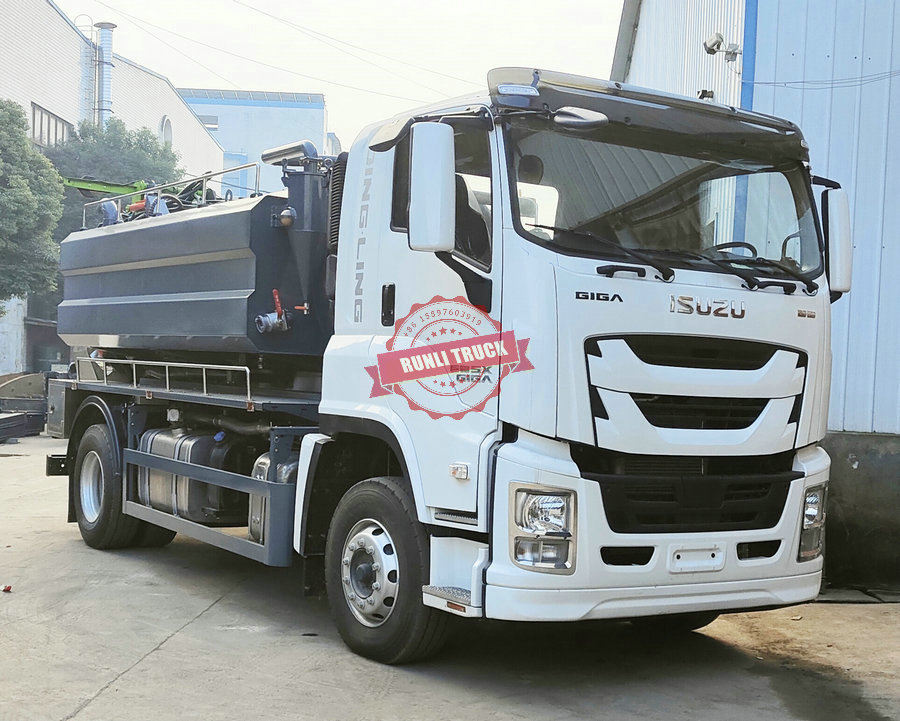

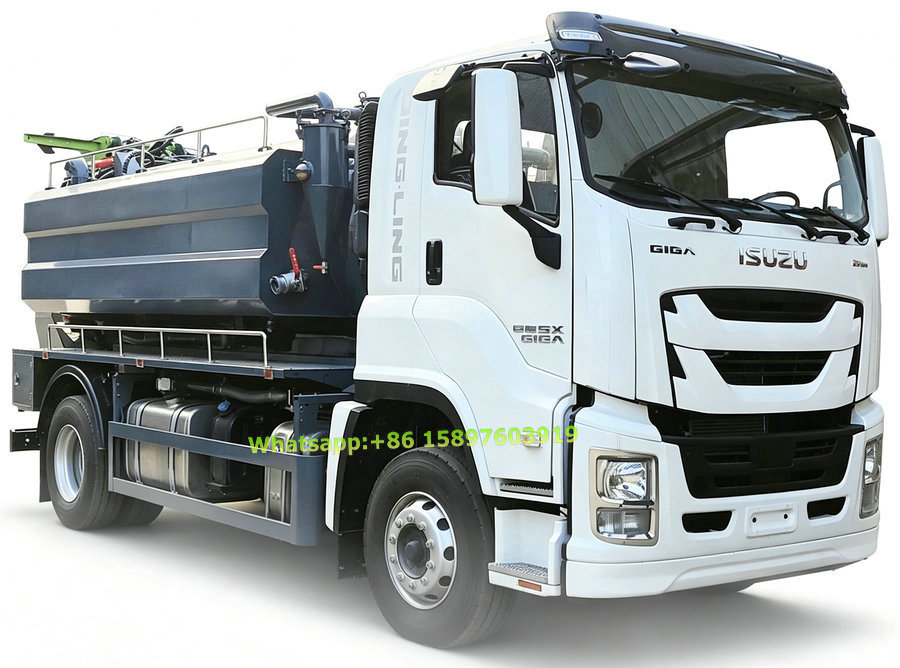

The cleaning and suction truck, also known as the joint dredging truck, is a new type of specialized sanitation vehicle that combines the functions of a high-pressure cleaning truck and a suction truck. The highlight of this vehicle is its ability to clear blocked areas in the sewer that cannot be reached by human labor, hence it is called the joint dredging truck. The other functions of the car include floor flushing, sewage suction and discharge, and landscaping.
The cleaning and suction truck integrates functions such as flushing, dredging, suction, and reverse discharge. It is used for the suction, transportation, and discharge of various liquid and semi liquid substances, as well as sludge, feces, wastewater, suspended debris sludge, small bricks, crushed stones, and other media under various ditches and channels. It can also be used for emergency response to sudden environmental pollution accidents. This will greatly improve the efficiency of cleaning and suction trucks, enhance operational capabilities, and break through the use of advanced technology from domestic and foreign enterprises in previous cleaning and suction truck products. After digestion and absorption, vacuum technology and dual anti overflow pump devices can be fully utilized to better avoid tank overflow and extend the service life of vacuum pumps. The overall design structure of the vehicle is reasonable, with excellent performance, flexible and easy operation, and the addition of high-pressure cleaning truck function on the basis of suction trucks. One car dual-use, saving money and effort, cost-effective.
|
Chassis model |
QL1180JQFRCY |
Engine horsepower |
225HP |
|
wheelbase |
4500 |
Total weight |
18000 |
|
capacity |
12cbm 8000Liters Dirty water +4000Liters Clean Water |
tire |
275/80R22.5 18PR |
|
Engine model |
4HK1-TCG62 |
Outside dimension |
7690x2520x3250mm |
|
PinFl UV250 high-pressure pump, Italy JUROP PN155 vacuum pump, rear cover opening angle of 75 degrees, stainless steel ball valve for the whole vehicle, water tank heating machine with digital display, full tank alarm, automatic pressure relief, level anti overflow, cleaning machine, upper installation with electrostatic powder spraying paint treatment (asphalt anti-corrosion inside the tank), coil unit, remote control operation for high-pressure part, hydraulic opening and hydraulic locking of the rear head, stainless steel pneumatic ball valve for the drain outlet, stainless steel material for the toolbox, and stainless steel plate inside the tank. |
|||
| Isuzu's high-quality chassis is suitable for various modifications Rich engine power specifications, wheelbase series, and load capacity combinations of more than 10 modified vehicle chassis can meet various installation modification needs; |
| The frame of ISUZU GIGA 5X VC61 Cabin Truck High load-bearing capacity frame: Adopting 258 × 80 × 10 specifications, the overall U-shaped structure can meet both heavy load requirements and various modification needs. |
| axle Front axle: The integral end fist shaped F63 front axle is produced using world advanced forging equipment and technology, with strong load-bearing capacity, a maximum load capacity of 6.3 tons, and stable and reliable quality. Rear axle: The RT210 rear axle is produced using the world's advanced stamping, welding, machining, and assembly production lines and processes, with a load-bearing capacity of 21 tons, which can meet the heavy load requirements of users. |
| Operation of 4x2 ISUZU GIGA 5X Cabin Truck: Steering controllability: Equipped with hydraulic power steering device and scientifically designed steering trapezoid, making steering operation easy. The steering wheel angle and height can be adjusted, making it easy for drivers of all shapes to operate; Accelerator pedal control: lightweight, effortless, and easy to operate; Shift control: lightweight, effortless, and clear gear positions. |
 |
Isuzu 4H engine Displacement: 5.2L Maximum power: 151KW Maximum torque: 650N · m Better fuel atomization effect, more complete combustion, smoother operation, lower noise Strong power, low fuel consumption, reliable and durable Suitable for use in the Chinese environment |
| High quality chassis High load capacity chassis The frame is specially treated with electrophoresis in humid, severe cold, and saline alkali climates, which can adapt to various harsh weather conditions. The lightweight design is an advanced design standard, and the weight is about 1 ton lighter than similar models |
 |
 |
Comfortable driving cabin Excellent aerodynamic performance Control the width of the front part of the driver's cab, optimize the direction of wind resistance at the front corner of the vehicle, and adopt a streamlined shape to reduce wind resistance on the rear side of the vehicle, achieving optimal aerodynamic performance and helping to improve fuel consumption |
| 6mm-thick cylindrical tank with reinforced hoops, formed in one go, automatically welded by robots, and can be made of stainless steel material | Reinforced anti wave board inside the tank |
 |
 |
| Hydraulic reinforced rear head, easy to operate | After the welding of the tank body is completed, rust prevention treatment should be carried out first, and then it should be loaded onto the vehicle to increase the service life of the tank body |
 |
 |
| Sewage Suction Truck, Customization tank capacity from 2cbm to 25cbm sewage suction tank trailer | High quality installation accessories |
 |
 |
| High quality vacuum Pump optional SAMSON/CVS/JUROP/MORo Vacuum pump | Customization Color Or LOGO |
 |
 |
|
